| 序號No. | 項目Item | GL2000參數Value |
| 1 | 定位精度（X/Z）
Positioning accuracy | 0.01/300mm |
| 2 | 重復定位精度（X/Z）
Repeat positioning accuracy | 0.01mm |

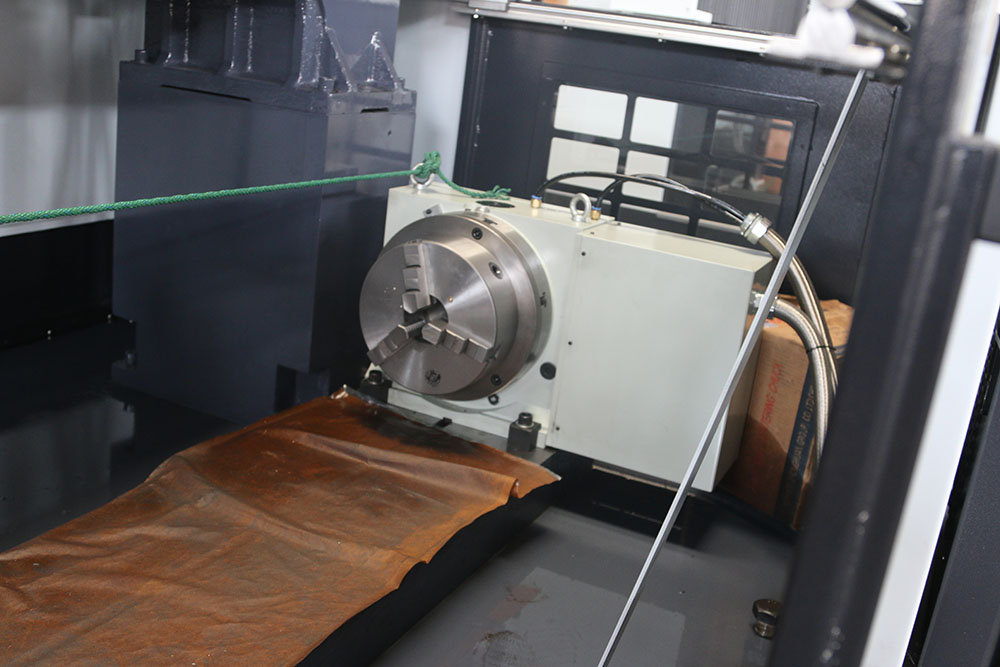

| 3 | 旋轉軸分度誤差
Rotary axis Positioning accuracy | 60″ |
| 4 | 旋轉軸重復精度
Rotary axis repeat positioning accuracy | 7.5″ |
| 5 | 軸工作行程（X/Z）
X/Z axix travel | 1800x260mm |
| 6 | 可裝卡工件長度
Max. length | 1800mm |
| 7 | 可裝卡工件直徑
Max. diameter | Φ340mm |
| 8 | 可裝卡工件重量
Max. load | 150kg |
| 9 | 主軸轉速

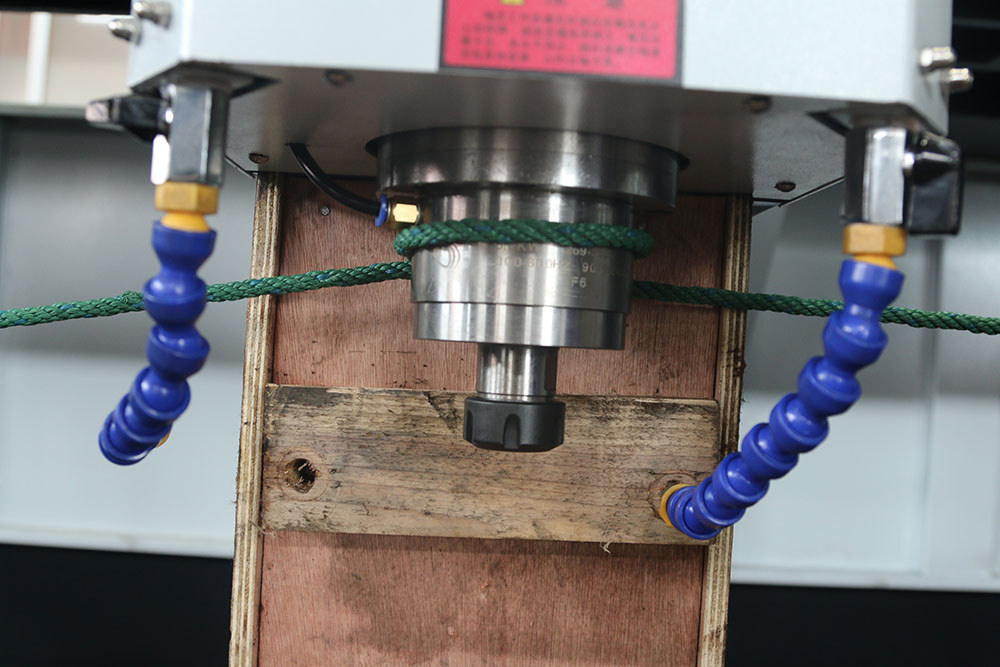

Spindle speed | 18000rpm |
| 10 | 驅動系統
Driver | 交流伺服電機
A/C Servo Motor |
| 11 | 工作電壓
Power supply | 三相380V
Three-phase 380V |
| 12 | 數控系統

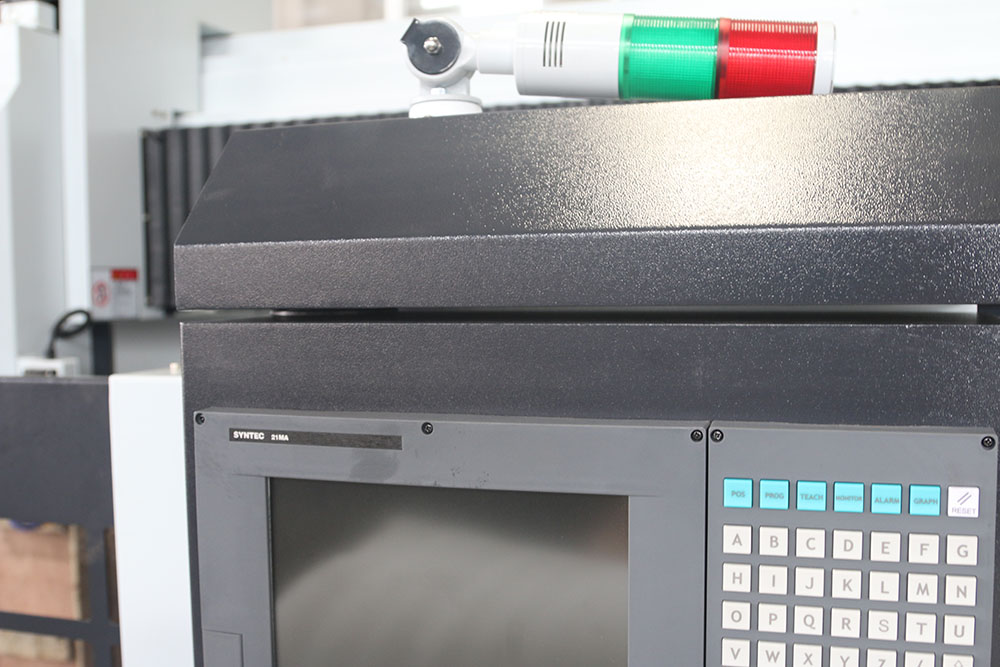

Controller | Syntec 21MA |
| 13 | 機床尺寸
Dimension | 3150x2000x2300mm |
